SmallHD Cine 7 Touchscreen On-Camera Monitor
Professional and Expandable On-Camera Monitor
Cine 7 is a 7” on-camera HD monitor, offering a color accurate wide-gamut display and cinema camera control. View your production in full sunlight thanks to 1800 nits of brightness and save your favorite tools, functions, and setting pages in one tap with PageOS.
The Full HD 7-inch IPS LCD display with 1920x1200 resolution ensures a clear look at your production, while 10-bit color processing in 100% DCI-P3 offers color accuracy. This guarantees the image on screen reflects what’s being captured by the camera. No matter the time of day, environment, or sunlight, you’ll get a clear, glare-free view of your monitor thanks to 1800 nits of brightness.

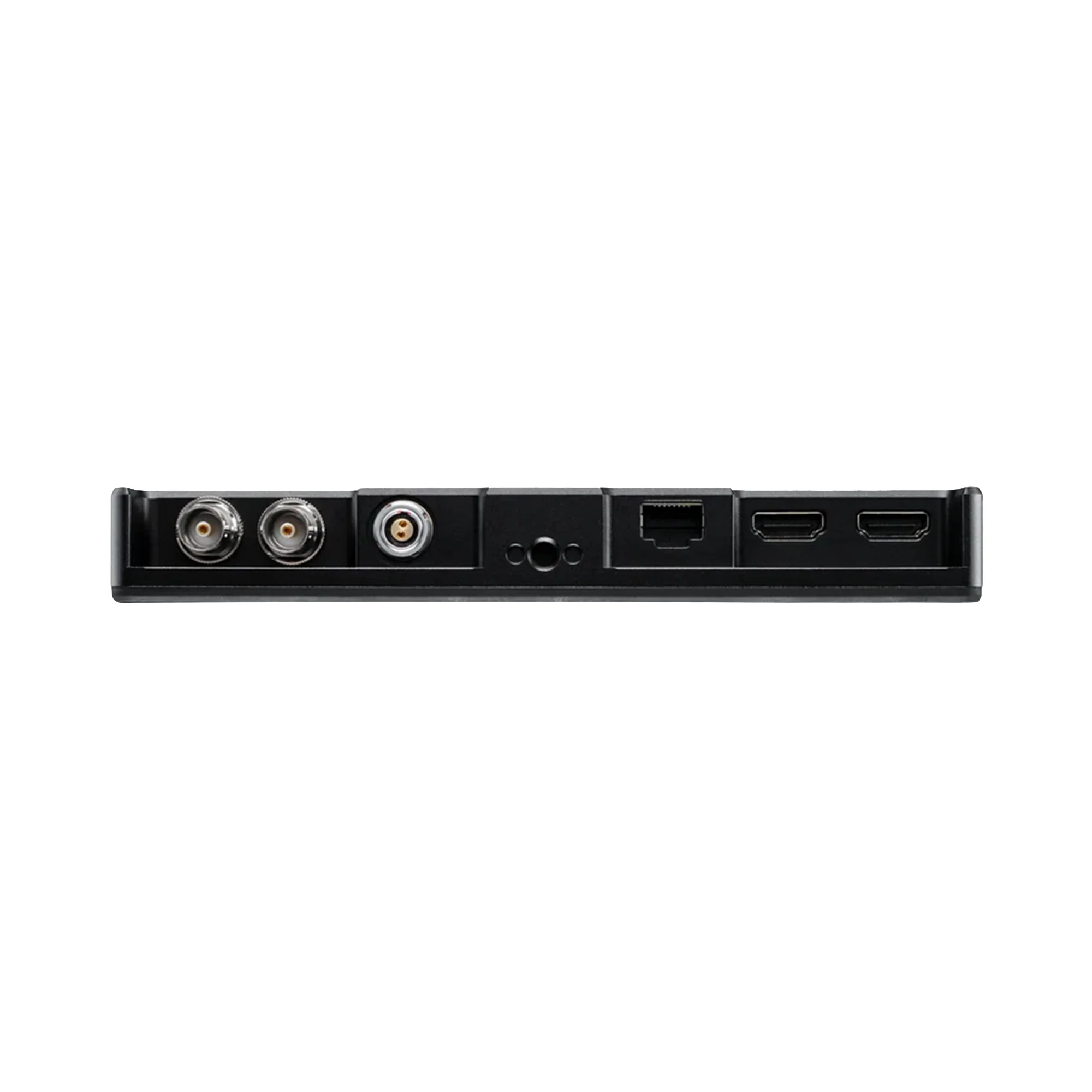

The Cine 7 features two 3G SDI inputs, with the second input doubling as a loop out, an HDMI input with an HDMI loop through, a Sony L-Series dual battery bracket, and the option to add on a Gold Mount or V-Mount battery plate attachment.
Meet Our Smart PageOS Software
With the power of SmallHD PageOS software, build customized Page Profiles, and utilize all of the dependable SmallHD features such as personalized frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope, waveform, and more.
Cine 7 Compatibility
The Cine 7 monitor is compatible with the Bolt RX Monitor Module. Improve your handheld monitoring workflow with this optional hardware addition to your Cine 7 monitor. Receive cable-free 4K wireless video from any Bolt 4K series transmitter at a distance of up to 750ft (228m).
Upgrade to Camera Control for RED® DSMC2 & KOMODO , ARRI, and Sony VENICE
Transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to RED DSMC2, RED KOMODO, ARRI, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more. *Individual Camera Control software licenses are sold separately.
Features:
- 7" 1920 x 1200 Touchscreen Display
- 1800nits Brightness
- 1x HDMI In, 1x HDMI Out
- 1x 3G SDI In, 1x 3G SDI In/Out
- ⅛” Headphone Jack
- 2-pin Locking Power Input (10V-34V, 2A DC), Sony Battery Bracket
- Four 1/4"-20 Mount Points (Left, Right, Bottom, and Back)
Compatible With:
Batteries:
- L-Series (2x on fixed plate)
- V Mount
- Gold Mount
Dimensions:
7.1 x 4.7 x 1.3"
Materials:
Anodized Aluminum Chassis
Product SKU:
MON-CINE7
In The Box:
SmallHD Cine 7 Touchscreen On-Camera Monitor
Limited 1-Year Manufacturer Warranty
Note: Monitor does not support the charging of batteries.
